Aliplast FR90
Aliplast FR90 is an advanced fire-resistant system designed with thermal insulation, providing high fire resistance for both interior and exterior installations. This system offers wall fire resistance (EI30, EI60, EI90, EI120) and door fire resistance (EI30, EI60, EI90), making it ideal for both residential and commercial properties that require maximum safety.
Aliplast FR90 offers a variety of solutions, including single and double doors, fixed windows, and various door lock and latch systems. The largest tested construction dimensions reach 6000 x 3000 mm, while door dimensions can be up to 3170 x 2870 mm. The system also allows for the installation of air vents and protective panels and offers a wide color selection, including standard RAL shades, textured finishes, and paints that mimic wood or stone surfaces.

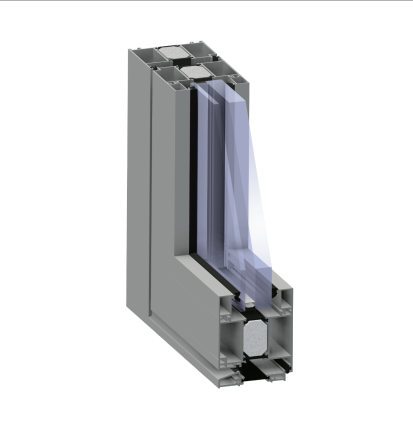

| Aliplast FR90 fix Technical parameters | |
|---|---|
| Material: | aluminum / poliamide |
| Frame depth: | 90 mm |
| Stash depth: | - |
| Glazing: | fixed 20-69 mm |
| Door type: | - |
| Aliplast FR90 door Technical parameters | |
|---|---|
| Material: | aluminum / poliamide |
| Frame depth: | 90 mm |
| Stash depth: | 90 mm |
| Glazing: | door 20-69 mm |
| Door type: | Single and double doors |
