ALUMINUM SLIDING DOORS

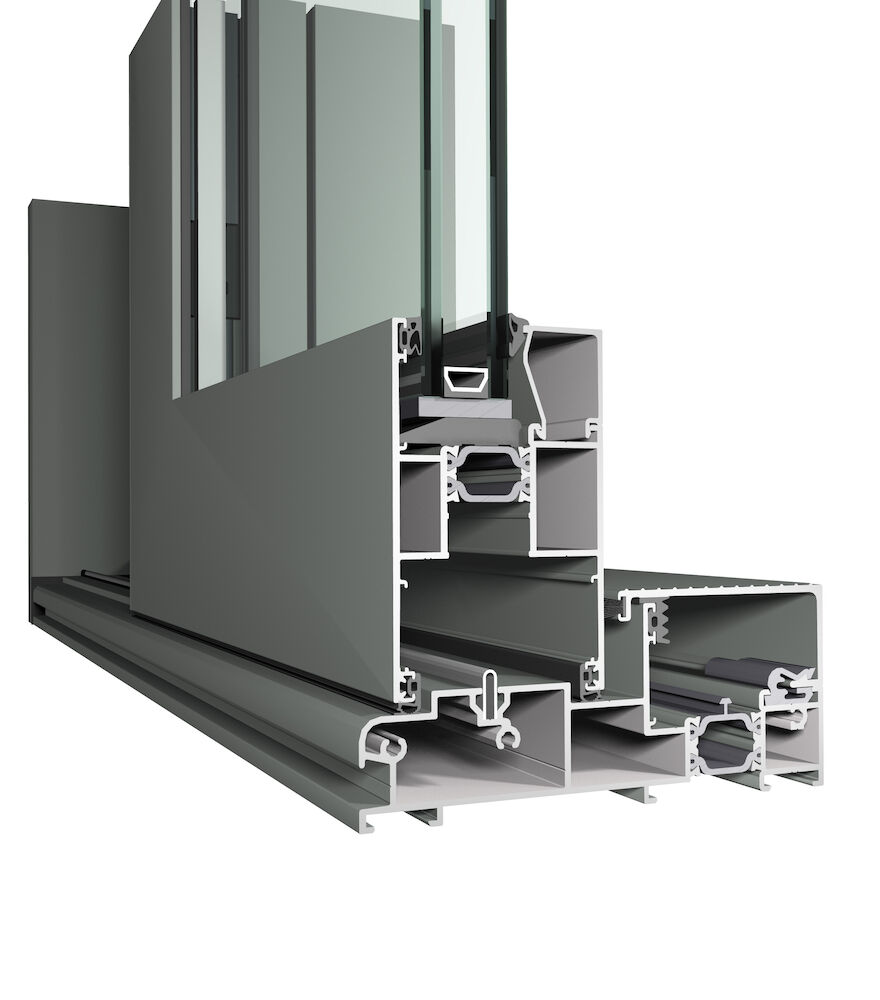

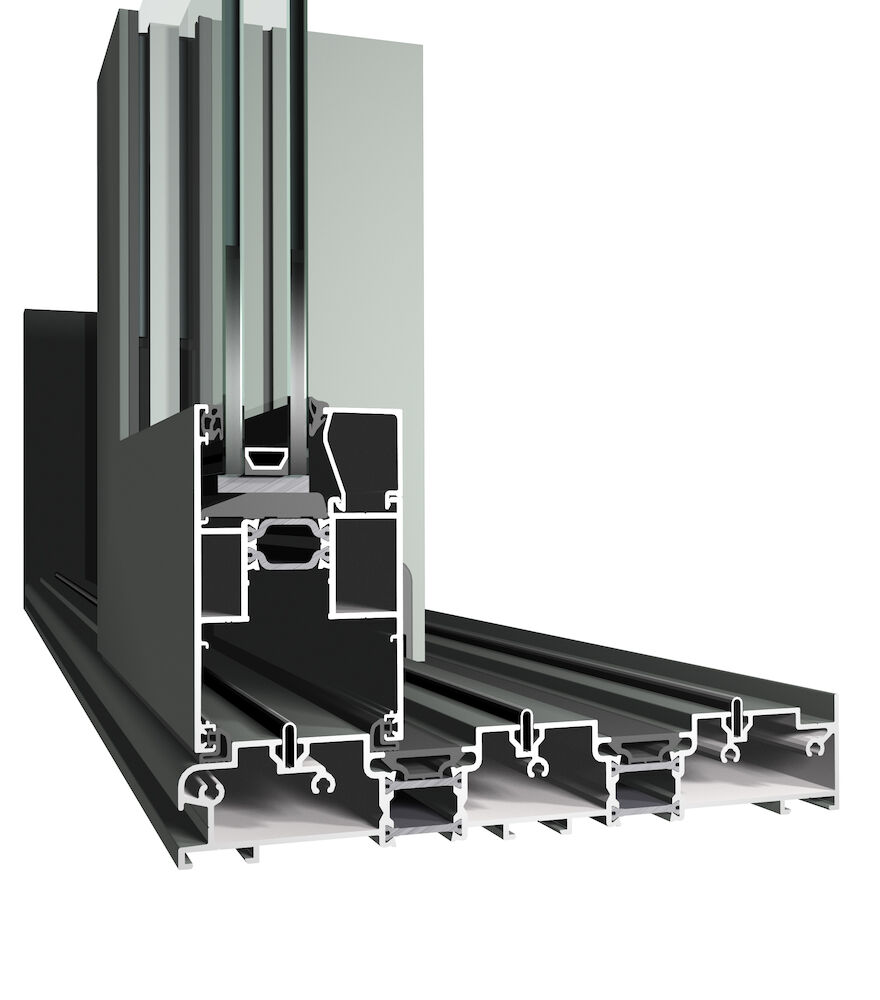

ConceptPatio 130

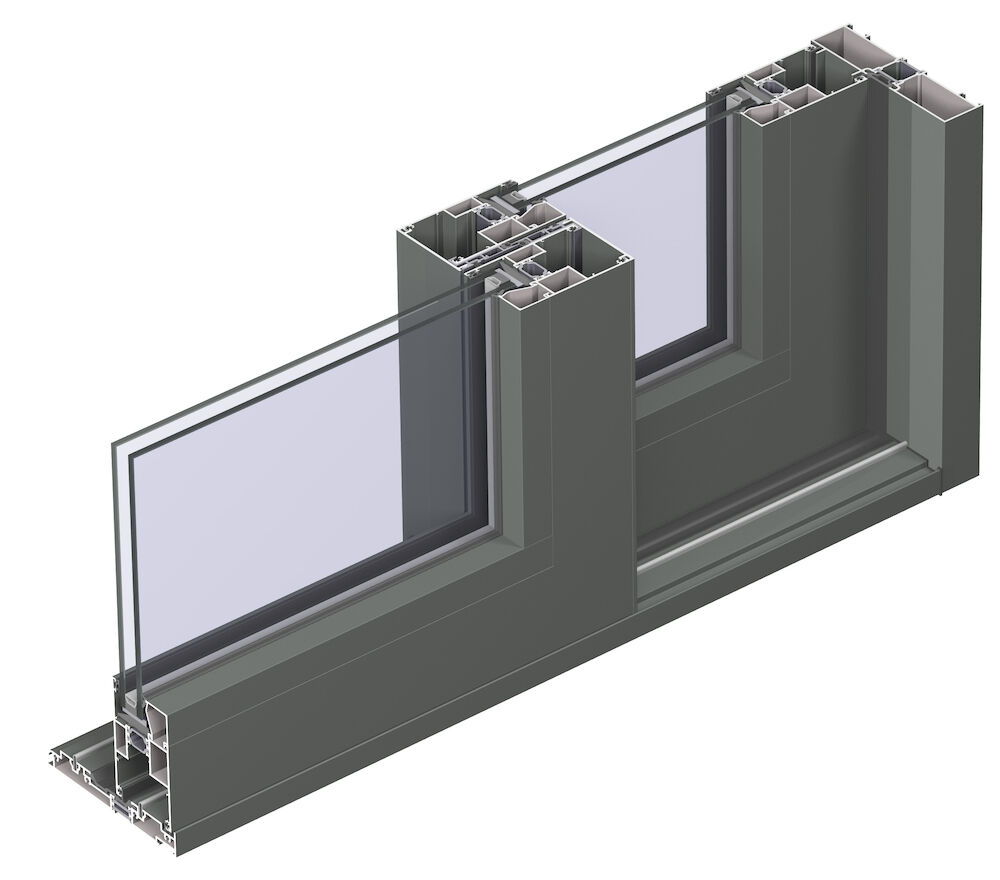

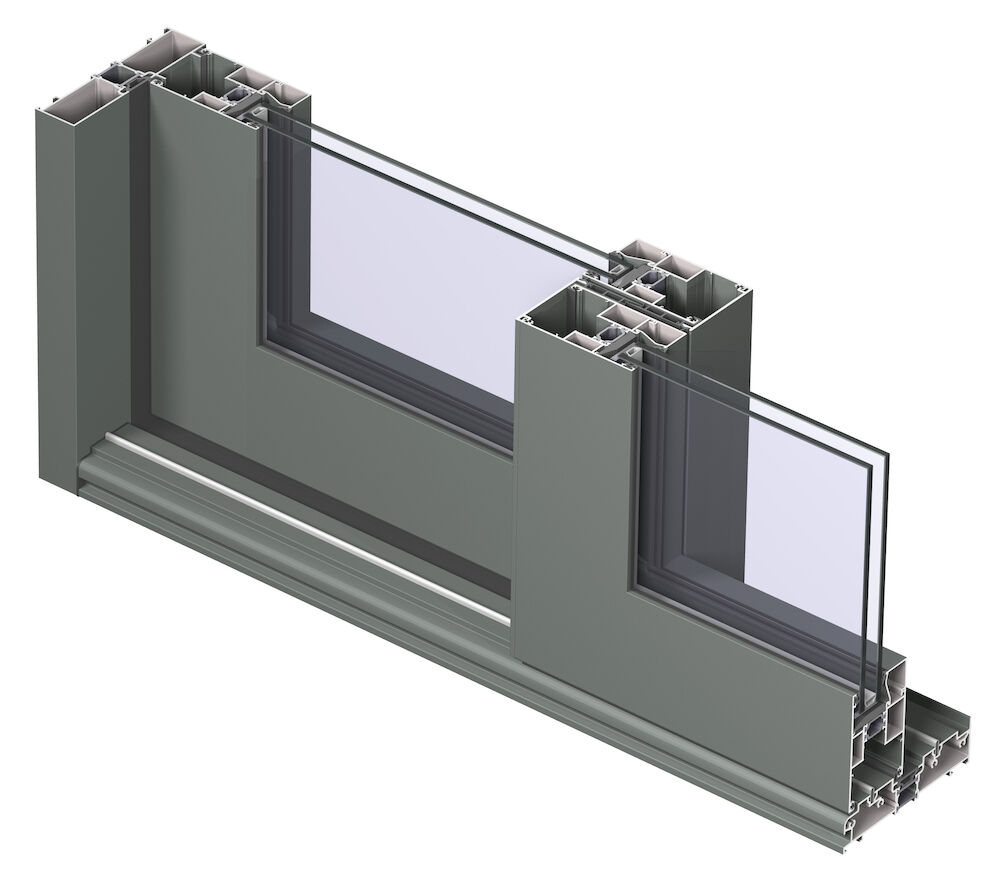

ConceptPatio 130 is a thermally insulated lift-and-slide system that meets the highest standards of insulation, stability and security. It is fully compatible with the ConseptSystem 77 system.

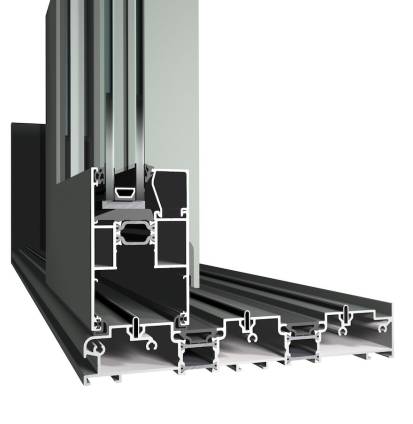

The ConceptPatio 130 system is available in various opening variants, and the model with a lowered threshold provides a solution for improving building accessibility.

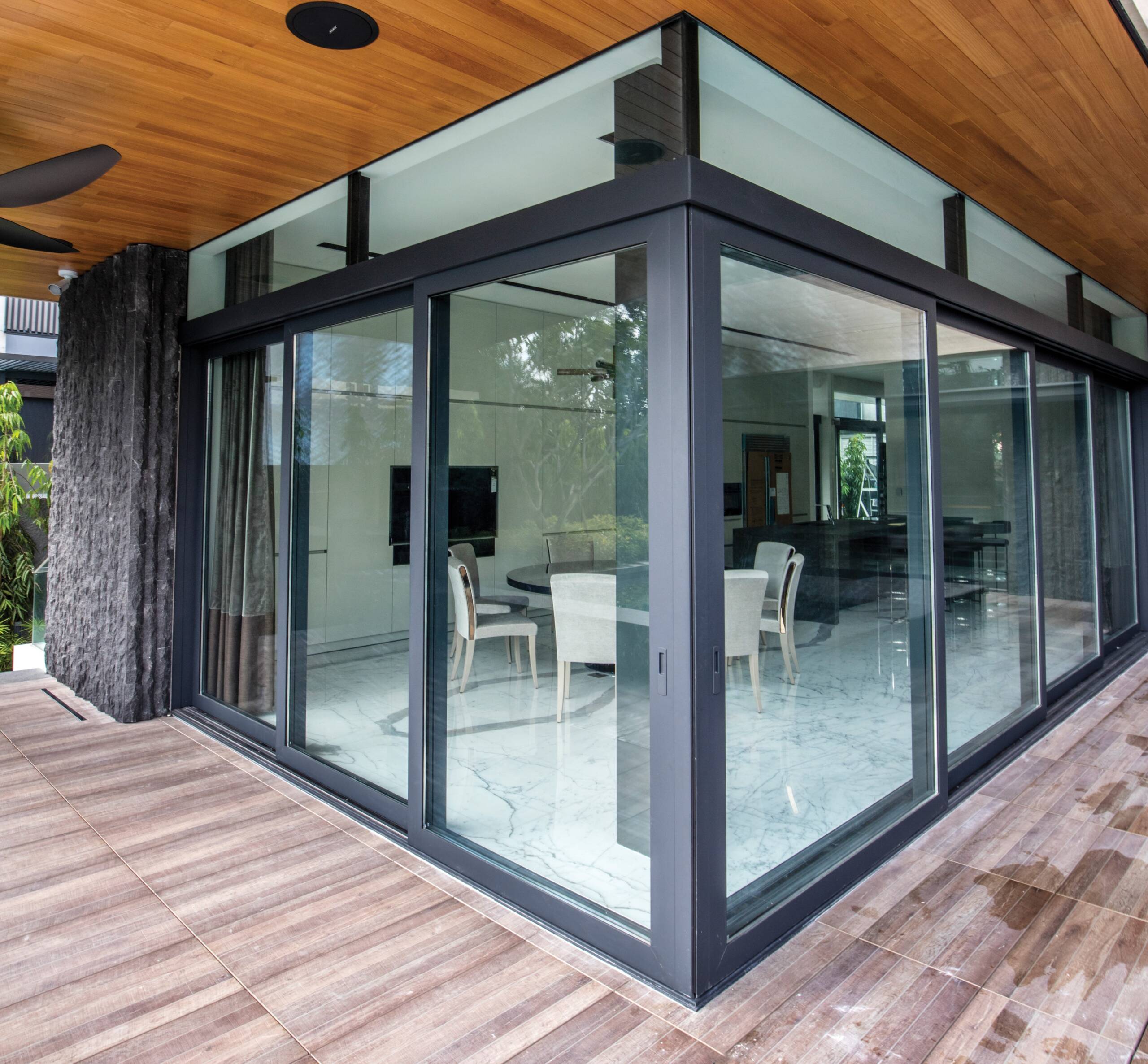

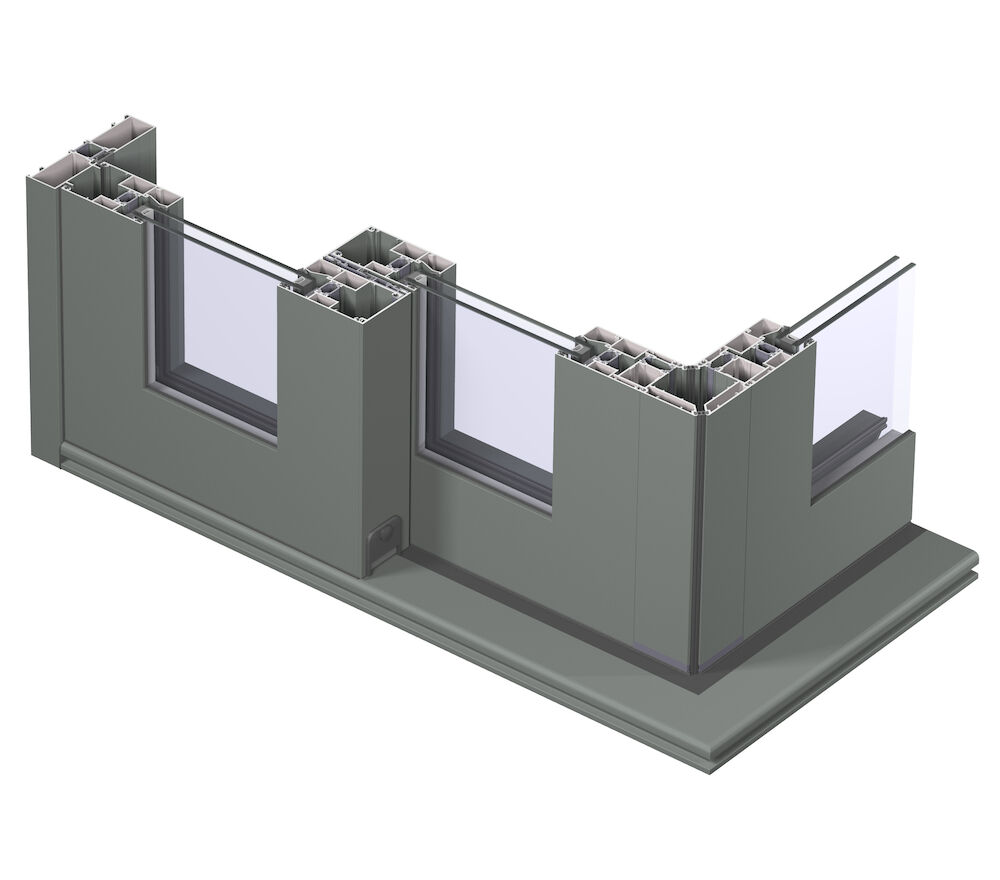

Innovative technology makes it possible to open the door without the need for fixed corner elements, offering a seamless transition between the interior of the building and the outside world.
This makes the ConseptPatio 130 system an ideal solution for viewing rooms.
| ConseptPatio 130/130LS Technical parameters | |
|---|---|
| Thermal insulation: | Uf value from 1,44 W/m2K depending on the choice of frame/sash and glass thickness |
| Acoustics: | Rw(C;Ctr) = 39 (-1;-3) dB, depending on the type of glazing |
| Air tightness: | up to 600 Pa (Class 4) |
| Wind load resistance: | up to 2000 Pa (Class B5) |
| Water tightness: | up to 750 Pa (Class E750 |
| Burglar resistance: | up to PAS 24 - RC2 |
