CURTAIN WALLS
CW 50
ARLANGA alu > Curtain walls > CW50

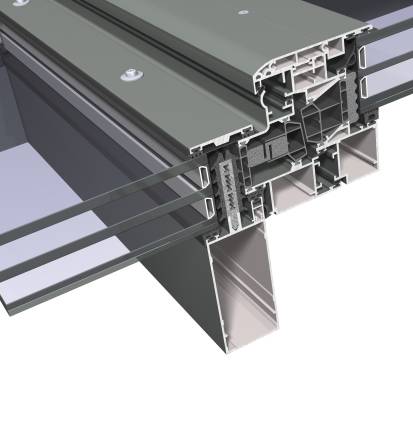

The CW 50 is a high-performance curtain wall system from “Reynaers Aluminium”, designed to create large, transparent facades with maximum natural light.
Its sleek design allows for slim sightlines, offering a modern aesthetic without compromising strength or insulation.
The CW 50 system supports multiple glazing options, providing excellent thermal insulation and energy efficiency, making it ideal for both residential and commercial high-rise buildings. With versatile design possibilities, including different opening types and façade angles, CW 50 ensures architectural freedom. It also meets stringent safety standards and offers advanced weather resistance, making it a reliable choice for modern and sustainable building envelopes.
| CW 50 Technical parameters | |
|---|---|
| Thermal insulation: | Uf-value from 0,56 W/m2K depending on the choice of frame/sash and glass thickness |
| Acoustics: | Rw(C;Ctr) = 47 (-2;-6) dB, depending on the type of glazing |
| Air tightnesssandarumas: | up to 1950 Pa (RE1950) |
| Wind load resistance: | up to2400 Pa (E2400) |
| Water tightness: | up to 1950 Pa (RE1950) |
| Burglar resistance: | up to RC2-RC3 |
