SlimWall 35 CW 35

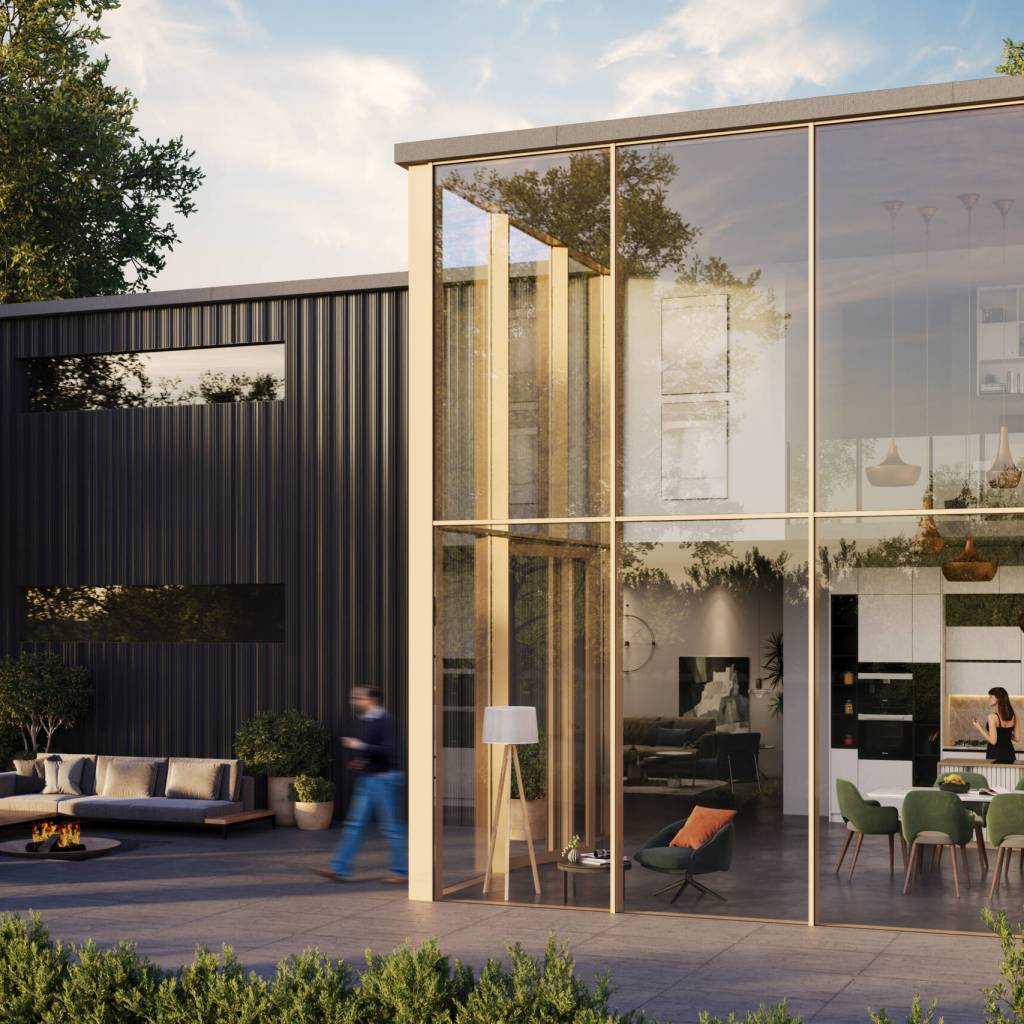

The SlimWall 35 is an innovative and versatile facade system from “Reynaers Aluminium”, designed for creating lightweight, modern glass walls with minimalistic aesthetics. This system features slim profiles that maximize natural light and provide expansive views, making it ideal for contemporary architectural designs.

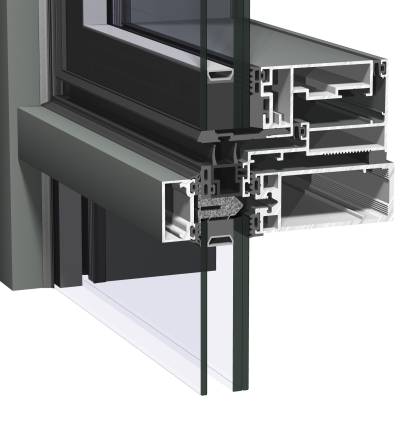

With a depth of just 35 mm, SlimWall 35 allows for a sleek appearance while ensuring excellent thermal insulation and energy efficiency. It supports various configurations, including fixed and opening elements, and is compatible with multiple glazing options. Additionally, the SlimWall 35 meets high-performance standards for weather resistance and security, making it an ideal choice for both residential and commercial projects seeking a modern, stylish facade solution.
| SlimWall 35 - CW 35 Technical parameters | |
|---|---|
| Thermal insulation: | Uf-value from 0,71 W/m2K depending on the choice of frame/sash and glass thickness |
| Acoustics: | Rw(C;Ctr) = 46 (-1;-4) dB, depending on the type of glazing |
| Air tightness: | up to 1200 Pa (RE1200) |
| Wind load resistance: | up to 2000 Pa (A5 class) |
| Water tightnessvandeniui: | up to 1200 Pa (E1200 class) |
| Burglar resistance: | up to RC2 |
